What Size Tile Trim Do You Need: Standard Sizing Chart

When planning any tile work, achieving those crisp, protected edges often comes down to the trim. Selecting the right profile is one part, but knowing what size tile trim to use ensures a proper fit and a lasting, professional finish. This guide offers straightforward advice and a sizing chart to help you determine the correct trim depth for your tiles.

What Determines the Correct Tile Trim Size?

Figuring out the right depth for tile trim often seems straightforward, but overlooking a couple of details can lead to a less-than-perfect finish or even installation headaches down the line. It's more involved than just picking a trim that matches the tile's stated thickness on the box. Let's look at what really goes into making that choice.

The most apparent starting point is the tile thickness itself. This dimension, whether dealing with slender ceramic mosaics or more substantial porcelain pavers, serves as the primary reference for any trim depth calculation.

Beyond the tile itself, the role of tile adhesive is a critical factor. When a tile is installed, it rests upon a bed of adhesive, commonly thin-set mortar. This adhesive layer contributes to the overall installed depth. Consequently, the tile trim generally needs to be deeper than the tile alone to accommodate this adhesive and allow the trim to be set correctly, creating a neat edge that aligns flush with the tile surface.

Consideration must also be given to the specific application areas. For instance, wall tile installations might utilize a slightly thinner adhesive bed compared to floor tiles. Floor applications often require a more robust adhesive layer for enhanced support and to help manage minor variations in the subfloor. This difference can, therefore, influence the required trim size.

Finally, while various trim profiles – such as L-shape, round edge, or square edge – primarily define the aesthetic finish and the type of edge protection offered, their fundamental depth sizing adheres to the same principles. The choice of profile does not typically alter the core calculation based on tile and adhesive thickness.

What Size Tile Trim: Using Our Standard Sizing Chart

To simplify the process of choosing the correct depth, we've put together a standard sizing chart. This chart is designed to be a quick reference, helping you match common tile thicknesses with generally recommended tile trim sizes for both wall and floor work. Think of it as a solid starting point for most typical installations.

You'll see the chart organized by tile thickness. For each thickness, we suggest a suitable trim size range, acknowledging the slight differences often needed for wall versus floor applications due to adhesive bed variations. The notes column offers some context on where you might encounter these tile sizes.

The Standard Tile Trim Sizing Chart

A Note on Chart Values: These recommendations are based on typical adhesive bed depths. Specific site conditions or adhesive manufacturer guidelines should always be considered.

The General Principle: Allowing for Adhesive

The figures in the chart reflect a fundamental aspect of tile setting: the need to account for the adhesive. As mentioned earlier, your tile trim almost always needs to be slightly deeper than the tile itself – typically by 1mm to 2.5mm. This extra depth accommodates the thin-set mortar or other adhesive used to bed the tile, ensuring the trim can be properly embedded and achieve a flush finish with the tile surface. If the trim is the same depth as the tile, it will likely sit proud once the tile is set on its adhesive bed.

Detailed Sizing for Specific Tile Thicknesses

That sizing chart is a reliable guide for most situations, but sometimes a little extra detail on choosing trim for common tile depths can be quite useful. Understanding these finer points often makes the difference in achieving a finish that’s not just acceptable, but truly professional and built to last.

Trim for Thinner Tiles: The 5mm, 6mm, and 7mm Range

When you're working with tiles in the 5mm to 7mm thickness category – typically your delicate mosaics or some of the slimmer ceramic wall options – a bit more care in trim selection is usually warranted.

For a 5mm thick tile, you'll generally find a trim depth of 6mm to 7mm works well for wall installations. If these are going onto a floor, which is less common and really demands a perfectly flat and solid base, you might look at a 7mm to 7.5mm trim. With tile profiles this slender, it's often best to choose a minimalist trim style, like a simple straight edge or one with a very slight curve, so the trim doesn't visually overpower the tile.

With 6mm tiles, often seen in kitchen splashbacks or on bathroom walls, a 7mm to 8mm trim is a common choice for vertical surfaces. If they're planned for a floor area that won't see heavy traffic, an 8mm to 8.5mm trim could be considered.

For 7mm tiles, stepping up to an 8mm to 9mm trim for walls, or 9mm to 9.5mm for floors, will usually provide the needed space for the adhesive. One important note for all these thinner tiles: ensuring the trim is well-bedded to give proper support to that more fragile tile edge is a key part of the job.

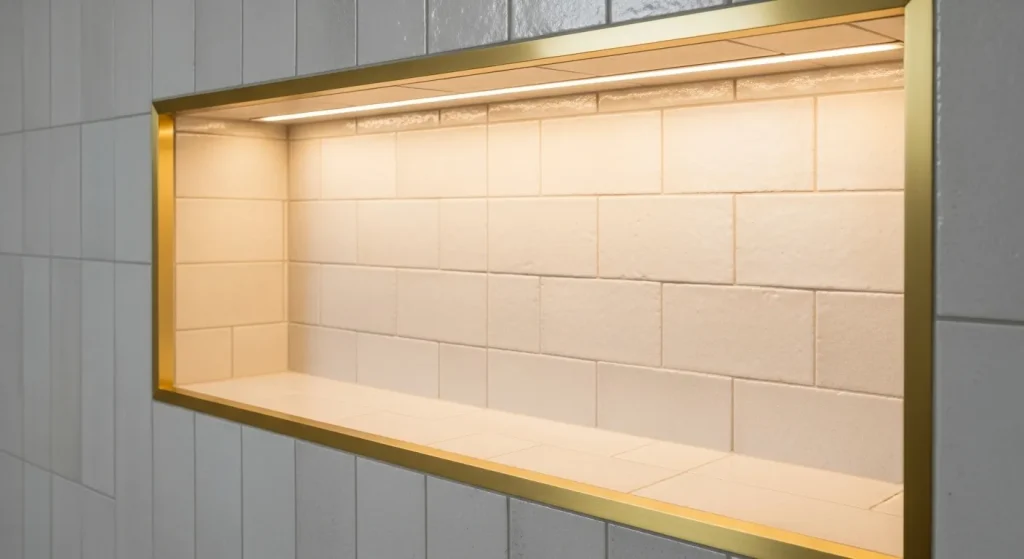

Finding the Right Trim for 8mm Thick Tiles

An 8mm tile is a very common thickness in the industry, a real workhorse found in both ceramic and porcelain for a wide variety of wall and floor applications. If you’re trying to determine the tile trim size for an 8mm thick tile, a 9mm to 10mm trim is typically a sound selection for wall use. For floor installations with 8mm tiles, where the adhesive bed might be a little more generous to help with leveling and ensure good contact, a 10mm to 10.5mm trim usually fits the bill nicely. Tiles of this thickness are sturdy enough to work well with different trim profiles, from basic L-shapes to more decorative quadrant (quarter-round) styles.

Appropriate Trim for 9mm Tiles

When you're dealing with 9mm tiles – these are often your durable porcelains, well-suited for areas that are going to see a fair amount of foot traffic or general wear – the trim needs to be up to the task as well. A trim depth of 10mm to 11mm generally provides the necessary room for adhesive on a wall. If these 9mm tiles are being laid on a floor, an 11mm to 11.5mm trim is usually the more appropriate choice. And with tiles this substantial, it’s wise to think about a trim profile that can offer good protection against knocks and bumps, especially for those outside corners in busy hallways or even some commercial settings.

Choosing Your Trim with 10mm Tiles

Ten-millimeter thick tiles are another staple in the tile world, used extensively for both residential and commercial floors and walls. It’s a frequent question: what trim is needed for 10mm tiles? The general advice points towards an 11mm to 12.5mm trim for wall applications. For floor jobs, a 12mm to 12.5mm trim depth helps ensure a solid, flush finish once you account for the adhesive. You'll also find that some trim manufacturers produce a 12.5mm trim size almost as a standard partner for 10mm tiles, as this nicely accommodates the tile and a typical mortar bed.

Sizing Trim for Thicker Tiles: 12mm, 15mm, and Up

As you get into the thicker end of the tile spectrum – say, 12mm, 15mm, or even more substantial pieces like natural stone or some of the heavy-duty pavers for exterior use – the trim depth naturally needs to increase as well.

For 12mm tiles, a trim in the 13mm to 14mm range for walls, and 14mm to 15mm for floors, is a common starting point. When you're working with 15mm tiles or even thicker profiles, you'll likely be looking at trims that are 17mm, 17.5mm, or possibly larger. With these heavier materials, always remember that the adhesive bed itself might need to be a bit thicker to ensure good bonding and proper support. Also, a practical tip for very thick floor tiles, especially at transitions to other flooring: a ramped or sloped transition trim often provides a smoother, safer, and more professional finish than a standard square-edged one.

Considering Other Aspects of Tile Trim Selection

While the depth or size of the trim is your primary concern based on tile thickness, a few other factors are worth a brief mention as they can influence your final choice or how well that chosen size performs.

Trim Materials and Profiles: A Quick Look

Tile trims are commonly found in aluminum, PVC, and stainless steel. Aluminum is versatile and comes in many finishes. PVC is a cost-effective, waterproof option good for wet areas. Stainless steel offers maximum durability for demanding locations. While the material itself doesn't directly dictate the depth you need, its rigidity or flexibility might be a minor consideration for handling during installation of certain trim sizes.

>> See Product List: 12 Types of Tile Trim for You in 2025

Common profiles include the L-Shape (for a square edge), Round Edge (for a softer look), and Quadrant (for internal corners). The profile choice is mainly aesthetic, but an overly bulky profile on a very thin tile (even if the depth is correct) might look out of proportion. So, consider the visual harmony between the tile size, trim size, and trim profile.

Trim Lengths, Corners, and Transitions

Standard trim lengths are usually around 2.5 meters. Always factor in about 10-15% extra for cuts. For corners, pre-formed pieces or precise mitre cuts are the way to go for a professional finish that complements your well-sized trim.

Transition trims are essential when tile meets another flooring type or there's a height difference. These often have specific depth ranges designed to work with common tile and adhesive thicknesses, so selecting the right transition profile often goes hand-in-hand with confirming your overall tile and trim height.

Installation Guidance for a Flawless Result

Even the perfectly sized tile trim can look wrong if not installed correctly. Proper installation ensures that the trim depth you carefully selected performs as intended.

Achieving a Neat, Flush Finish

The main goal here is for the top of the trim to sit flush with the tile surface. This is where your correct depth calculation (tile thickness + adhesive) truly pays off. Ensure the trim is solidly bedded in the adhesive so it doesn't sit too high or too low relative to the tile.

Accurate Measurement and Cutting

Precise cuts are vital. Whether you're using a hacksaw for PVC or a specialized blade for metal, clean, accurate cuts ensure tight fits at joints and corners, making your chosen trim size look its best.

Gaps and Grout Integration

Consider how the trim will integrate with grout lines. A small, consistent gap between the tile and trim, later filled with grout, is common and can help create a neat, sealed edge. This detail ensures the entire assembly, including your correctly sized trim, functions well, especially in wet areas.

Conclusion

So, when it comes down to picking the right size tile trim, the main takeaway is pretty straightforward: always account for your tile's thickness plus the adhesive bed. That's the golden rule. Our sizing chart is there to give you a solid head start for most common situations, taking a lot of the guesswork out of it.

But remember, every tiling job has its own quirks. While charts and general rules are invaluable, nothing beats carefully considering the specific tiles you're using, the surface you're tiling onto, and the kind of finish you're aiming for. Taking that extra moment to think through these details is what ultimately leads to a clean, durable, and professional-looking result that you can be proud of.

Reader Questions on Tile Trim Sizing

Here are a few common questions that often come up when dealing with tile trim sizes:

What if my tile thickness falls between standard trim sizes?

Generally, it's better to go for the slightly larger trim size. This ensures you have enough room for the adhesive without the trim sitting too low. A trim that's a fraction too small can cause problems with achieving a flush finish.

Should tile trim for walls be different from floor trim for the same tile?

Yes, often it can be. Floor installations sometimes use a slightly thicker adhesive bed for leveling and durability, so you might opt for a trim that's 0.5mm to 1mm deeper for floors compared to walls, even with the same tile. Our chart reflects this.

Do I need to account for grout line width when choosing trim size?

No, the trim size (depth) is primarily determined by the tile thickness and adhesive. Grout line width affects the horizontal layout and the amount of grout needed, but not the vertical depth of the trim itself.

What's the best way to measure my tile's actual thickness?

For the most accurate measurement, use a caliper. If you don't have one, you can stack a few tiles (e.g., 5 or 10) and measure the total height, then divide by the number of tiles. This helps average out any minor individual tile variations.

If my trim is slightly too deep, can I just use more adhesive under the tile?

While minor adjustments can sometimes be made with adhesive, intentionally using a significantly oversized trim and trying to build up the tile with excessive adhesive is not recommended. It can lead to an uneven tile surface, lippage, and potential bonding issues. It's best to get the trim size as close as possible.

Are there specific trim sizes for thicker natural stone tiles?

Yes, as natural stone tiles (like marble, granite, or slate) can be quite thick (e.g., 12mm, 15mm, 20mm or more), you'll find trims available in correspondingly larger depths. Always measure your specific stone and account for a robust adhesive bed.
