Achieving a flat and even surface is crucial for any tiling project, as an uneven surface can lead to trip hazards, water pooling, and an unsightly finish.
One solution to this common problem is the use of levelling spacers for tiling, a specialized tool designed to ensure adjacent tiles are held at the same level as the adhesive dries, effectively eliminating lippage and resulting in a professional finish.
This article will explain in detail what leveling spacers are, how they work, the benefits of using them, and provide a step-by-step guide on how to use them, as well as briefly mention other essential tiling tools.
Understand levelling spacers for tiling
Levelling spacers for tiling, also known as tile leveling spacers or tile leveling systems, are specialized tools used during the installation of tiles to ensure they are evenly spaced and level. These spacers are designed to combat the common problems associated with tile installation, such as tile lippage, uneven spacing, and slow installation times.
Define of levelling spacers for tiling
Leveling spacers are made up of two parts: a spacer clip and a wedge. The spacer clip is a small plastic piece that is placed between the tiles as they are being laid. It has small spacer legs on the bottom, which determine the grout joint width, and a hole in the center, through which a wedge is inserted.
The wedge is a small plastic piece that is inserted into the hole of the spacer clip and then tightened to level the tiles. As the wedge is tightened, it pulls the tiles into alignment with each other, eliminating any lippage between them. This ensures that the tiles are not only evenly spaced but also perfectly level.
How levelling spacers for tiling work
Levelling spacers for tiling work by utilizing the spacer clip and wedge to align adjacent tiles and ensure a uniform grout joint. The spacer clip is first inserted beneath the tiles, with its spacer legs determining the width of the grout joint.
Then, the wedge is inserted through the spacer clip and tightened. As the wedge is tightened, it exerts pressure on the tiles, pulling them into alignment and eliminating lippage.
This mechanism ensures that all tiles are held at the same level during the drying of the adhesive, resulting in a flat surface once the adhesive has fully set.
This method is a significant improvement over traditional spacers, which only ensure uniform grout joint widths but do not address tile lippage. With traditional spacers, it is still possible for adjacent tiles to be at different heights, resulting in an uneven surface. levelling spacers for tiling address this issue by ensuring both uniform grout joints and a flat tile surface.
Benefits of using leveling spacers
Prevent tile lippage
Tile lippage occurs when adjacent tiles are not at the same height, resulting in an uneven surface. This is not only unsightly but can also be a trip hazard. Levelling spacers for tiling work by aligning adjacent tiles and holding them at the same level as the adhesive dries, effectively eliminating lippage.
This results in a flat, even surface that is both aesthetically pleasing and safe to walk on. Eliminating lippage is especially important for large format tiles, which are becoming increasingly popular but are more susceptible to lippage due to their size.
Additionally, tile lippage can also cause issues with water drainage, especially in wet areas like bathrooms and kitchens. By ensuring a flat surface, levelling spacers for tiling help prevent water from pooling in certain areas, contributing to a safer and more functional space.
Speed up the installation process
Traditionally, achieving a flat tile surface required careful manual adjustment of each tile, a time-consuming and labor-intensive process. Leveling spacers streamline this process by holding the tiles in place and at the same level as the adhesive dries.
This eliminates the need for constant manual adjustment, significantly speeding up the installation process. Additionally, levelling spacers for tiling also ensure uniform grout joints, eliminating the need for traditional spacers, which further speeds up the installation.
This not only saves time but also reduces labor costs, making the tiling project more cost-effective. Additionally, by speeding up the installation process, levelling spacers for tiling can help reduce downtime in commercial applications, minimizing the impact on business operations.
Achieve a professional finish
Using levelling spacers for tiling results in a flat, even tile surface with uniform grout joints, a hallmark of a professional tile installation. This is especially important in commercial applications where the quality of the installation can impact the overall perception of the space.
A professional finish also contributes to the longevity and durability of the tile surface. An uneven surface with lippage can cause tiles to crack or become loose over time, leading to costly repairs.
Additionally, a flat tile surface is easier to clean and maintain, resulting in a more durable and long-lasting installation. Moreover, achieving a professional finish is not only important for the aesthetic appeal of the space but also for its functionality.
An uneven surface can be difficult to walk on and can cause trip hazards, while an uneven surface in wet areas can cause water to pool, leading to potential water damage.
How to use leveling spacers
Using leveling spacers can seem daunting at first, especially if you have never used them before. However, with a little practice and the right technique, it becomes quite straightforward. Below is a step-by-step guide to using leveling spacers, followed by some tips for achieving the best results.
Step by step guide to using leveling spacers:
1 Prepare the surface
Make sure the surface you are tiling is clean, level, and free of any debris.
This is crucial for achieving a flat tile surface as any debris or unevenness in the substrate can cause lippage in the finished tile surface.
2 Mix the adhesive
Mix the tile adhesive according to the manufacturer's instructions.
Make sure to mix it to the correct consistency, as indicated in the instructions.
3 Apply the adhesive
Using a notched trowel, apply a layer of adhesive to the surface.
Make sure to apply enough adhesive to fully bond the tile to the surface, but not so much that it oozes out between the tiles when they are placed.
4 Place the first tile
Carefully place the first tile onto the adhesive, making sure it is in the correct position.
Press down on the tile to ensure good adhesion.
5 Insert the spacer clips
Insert the spacer clips underneath the tile along its edges.
Make sure the spacer legs are fully inserted underneath the tile and that the spacer clip is sitting flat against the tile.
6 Place the next tile
Carefully place the next tile onto the adhesive, aligning it with the first tile and the spacer clips.
7 Insert the wedge
Insert the wedge into the hole of the spacer clip and tighten it until the tiles are level with each other.
Be careful not to overtighten the wedge as this can cause the tiles to crack.
8 Repeat the process
Repeat the above steps for each tile until the entire surface is tiled.
9 Allow the adhesive to dry
Once the entire surface is tiled, allow the adhesive to dry as per the manufacturer's instructions.
10 Remove the spacers
Once the adhesive has dried, remove the spacer clips and wedges by either twisting them or tapping them with a rubber mallet. The spacer legs will break off, leaving the grout joint clear.
11 Grout the tiles
Apply grout to the joints between the tiles using a grout float.
Make sure to remove any excess grout from the surface of the tiles before it dries.
Tips for best results
Use the right size spacer clips
Levelling spacers for tiling come in various sizes to accommodate different tile thicknesses. Make sure to use the right size spacer clip for your tiles. If the spacer clip is too small, it may not provide enough tension to level the tiles, and if it is too large, it may cause the tiles to crack.
Don't overtighten the wedges
Overtightening the wedges can cause the tiles to crack.
Tighten the wedges just enough to level the tiles and eliminate any lippage.
Use a level
Regularly check the surface with a level to ensure it is flat.
This will help identify any areas that may need adjustment before the adhesive dries.
Don't rush
Take your time to carefully position each tile and ensure it is level before moving on to the next one.
Rushing the process can lead to mistakes and an uneven surface.
Other essential tiling tools
While levelling spacers for tiling are an essential tool for achieving a flat, even tile surface, there are several other tools that are also important for a successful tiling project:

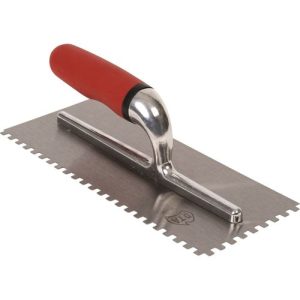

- Notched Trowel: A notched trowel is used to spread the adhesive onto the surface being tiled. The notches help ensure an even layer of adhesive is applied.
There are different sizes of notched trowels available, and the size you need will depend on the size of the tiles you are using.
- Tile Cutter: A tile cutter is used to cut tiles to the correct size and shape. There are several different types of tile cutters available, including manual tile cutters, electric tile cutters, and wet saws.The type of tile cutter you need will depend on the size and thickness of the tiles you are using, as well as the material they are made of.
- Tile Spacers: Traditional tile spacers are small plastic pieces that are placed between the tiles as they are being laid to ensure uniform grout joints.While leveling spacers also serve this function, traditional tile spacers may still be needed in areas where leveling spacers are not suitable, such as along the edges of the surface being tiled.
- Grout Float: A grout(learn more) float is used to apply grout to the joints between the tiles. It has a flat, rubber surface that helps press the grout into the joints and remove any excess grout from the surface of the tiles.
- Sponge and Bucket: A sponge and bucket of clean water are needed to clean any excess grout from the surface of the tiles before it dries.
- Rubber Mallet: A rubber mallet is used to tap the tiles into place and ensure good adhesion to the surface. It can also be used to remove the spacer clips and wedges once the adhesive has dried.
- Level: A level is used to ensure the surface being tiled is flat and even. It is important to regularly check the surface with a level as you work to identify any areas that may need adjustment before the adhesive dries.
- Tape Measure and Pencil: A tape measure and pencil are used to mark the tiles for cutting and to ensure they are positioned correctly on the surface.
It is important to have all the necessary tools on hand before starting a tiling project to ensure the process goes smoothly and the finished result is of a high quality.
Additionally, while this list covers the essential tools needed for most tiling projects, there may be other specialized tools required depending on the specifics of your project.
Conclusion
In conclusion, levelling spacers for tiling are an essential tool for achieving a flat, even, and professional tile surface.
They work by aligning adjacent tiles and holding them at the same level as the adhesive dries, effectively eliminating lippage.
This not only results in a more aesthetically pleasing finish but also a safer and more functional surface.
Additionally, levelling spacers for tiling can help speed up the installation process, reduce labor costs, and contribute to the longevity and durability of the tile surface.
Other essential tiling tools include a notched trowel, tile cutter, grout float, sponge and bucket, rubber mallet, level, and tape measure and pencil.
For the best tile leveling system in the UK, we recommend the Awisdom Tile Leveling System, which includes high-quality leveling spacers, wedges, and clips designed to make your tiling project as easy and efficient as possible.
FAQ
Are leveling tile spacers worth it?
Yes, leveling tile spacers are definitely worth it. They help ensure that the tiles are laid flat and even, eliminating lippage and resulting in a more professional and aesthetically pleasing finish.
Additionally, they can help speed up the installation process, reduce labor costs, and contribute to the longevity and durability of the tile surface. Overall, they are a small investment that can make a big difference in the quality of your tiling project.
What are tile leveling systems?
Tile leveling systems are a set of tools designed to ensure that tiles are laid flat and even, eliminating lippage.
The system typically includes spacer clips, wedges, and a specialized pliers. The spacer clips are inserted between the tiles as they are being laid, and the wedges are then inserted into the clips and tightened using the pliers until the tiles are level with each other.
Once the adhesive has dried, the spacer clips and wedges are removed, leaving a flat and even surface.
How long do you leave tile leveling spacers in?
Tile leveling spacers should be left in place until the adhesive has dried fully. The drying time can vary depending on the type of adhesive used, the humidity, and temperature of the environment, but typically it takes 24-48 hours for the adhesive to fully dry.
It is important to follow the manufacturer's instructions for the adhesive you are using to ensure the best results. Once the adhesive has dried, the spacer clips and wedges can be removed.
What are the best self-leveling tile spacers?
The best self-leveling tile spacers are ones that are durable, easy to use, and provide consistent results. It is also important to choose a system that includes high-quality spacer clips, wedges, and pliers.
We recommend the Awisdom tile leveling system as it includes high-quality components designed to make your tiling project as easy and efficient as possible.
